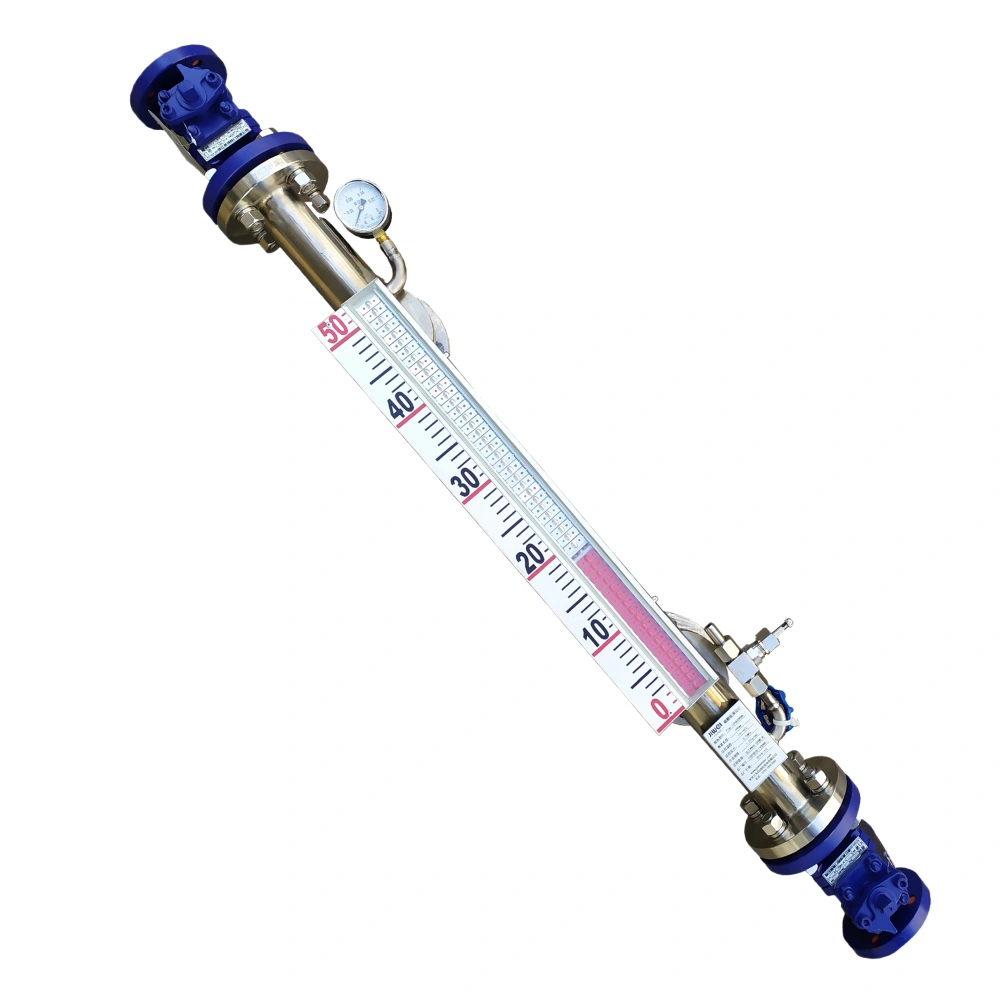

Flap-11Px lined magnetic level indicator is designed for local liquid level indication in processes that involve highly corrosive media. It is a practical choice for users who need long-term corrosion resistance, stable performance, and clear level display in severe chemical environments. To suit different media, the chamber lining is available in F4 (PTFE) or F46 (FEP).
The F4 lined chamber suits almost all highly corrosive liquids. The F46 lined chamber is a good choice for highly corrosive liquids with high permeability, such as liquid chlorine and bromine water. This gives users more flexibility when selecting the right configuration for chemical process conditions.
Reliable Magnetic Level Indication with Specialized Lining Design

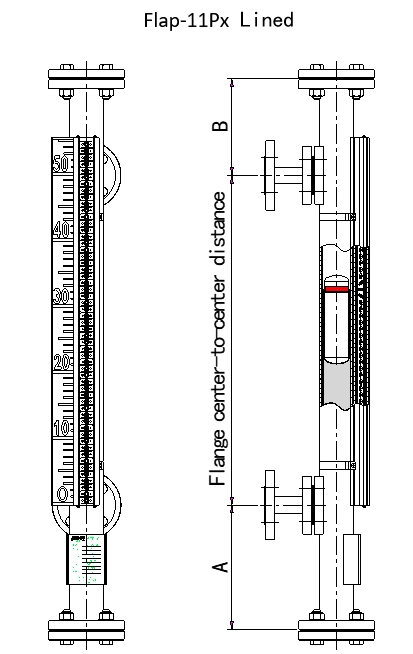

The indicator works on the principle of communicating vessels and magnetic coupling. The chamber mounts beside the vessel and connects directly to the process liquid. A magnetic float inside the chamber rises and falls with the liquid level. As the float moves, it drives the nearby bi-color magnetic flaps. The flaps turn from white to red or from red to white, which gives operators a clear local indication of the liquid level.
A key feature of the Flap-11Px is its special lining structure. Jiwei uses a dedicated lining technique to improve the fit between the chamber lining and the process flange. This helps reduce lining cracks caused by assembly stress. It also helps prevent corrosion damage caused by liquid leakage. As a result, the indicator delivers better reliability in harsh chemical service.
Clear Display with Strong Process Adaptability
The visual indicator uses a broad display area and larger magnetic flaps. This improves viewing angle and makes the level easier to read. The large scale and numerals also support visibility from a distance of up to 60 meters. Therefore, the unit works well in industrial areas where operators need fast local reading.
The instrument is available with IP65 or IP66/67 protection, depending on the installation environment. Users can also combine it with magnetic switches, compact magnetic switches, and remote transmitters when they need alarm, switching, or remote output. These accessories support SIL2 / SIL3 functional safety requirements and are available with intrinsically safe and flameproof approvals.
Typical Applications
This lined magnetic level indicator is widely used in brine tanks, caustic circulation tanks, brine dechlorination towers, chlorate decomposition tanks, ultra-pure hydrochloric acid storage tanks, ammonia storage tanks, and monomer tanks in PVC plants. It is also suitable for liquid chlorine and bromine water applications. It is especially useful in membrane electrolysis systems, chlor-alkali plants, chemical storage systems, and other processes that require strong corrosion resistance and reliable local level indication.
For other magnetic level solutions, see the [Flap-11C Plastic Magnetic Level Indicator] and the [Float-11P Coated Float Level Indicator]. The indicator can also work with a [remote transmitter] when remote signal output is required.
