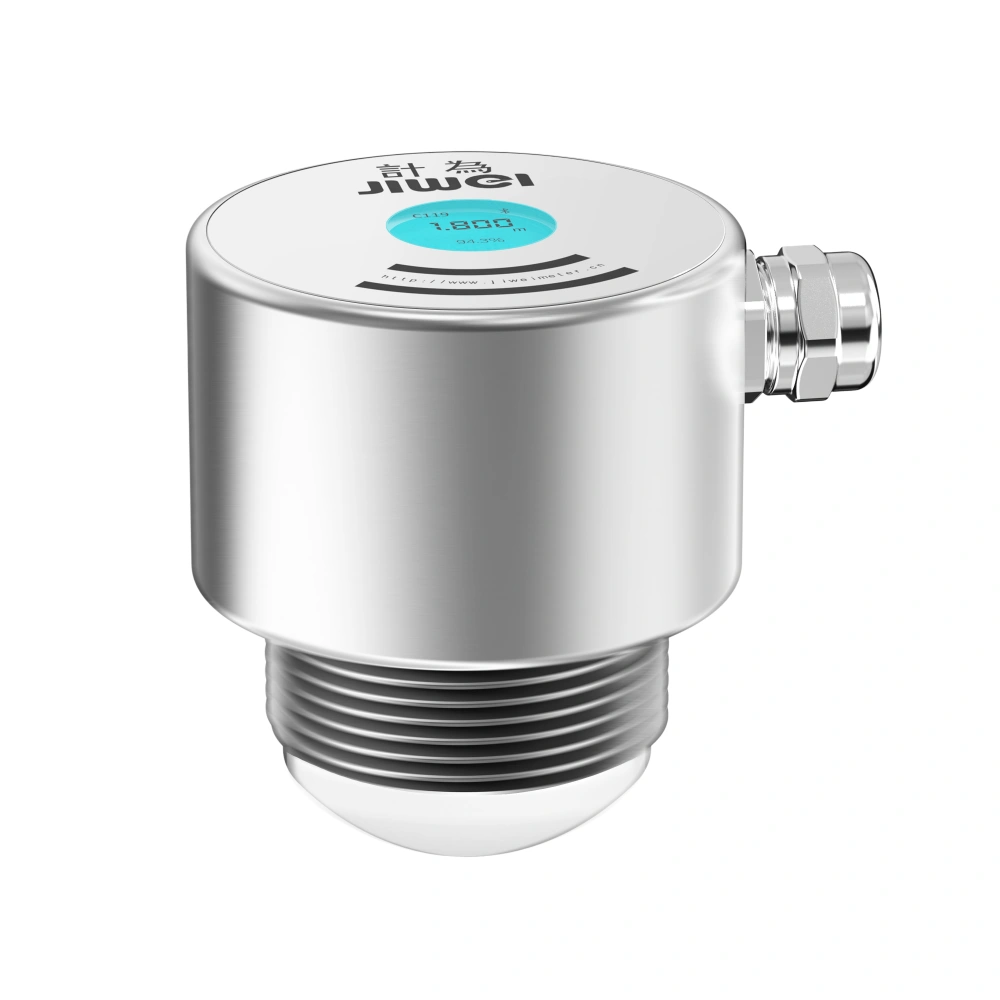

JWradar-22 level transmitter is designed for short-range level measurement in applications that need compact size, reliable performance, and easy local reading. It works well in hydrology, water management, general liquid monitoring, and selected short-range bulk solid applications. Because it uses non-contact radar measurement, it helps reduce wear and maintenance during long-term use.
This model uses 80 GHz FMCW radar technology and supports a measuring range of up to 30 meters. It is suitable for general liquid level measurement and short-range bulk solid monitoring under relatively simple process conditions. As a result, it is a practical choice for water tanks, open channels, utility systems, and general industrial tanks where compact radar measurement is preferred.
Smart Setup with Local Display
The device supports HART and Modbus communication and includes built-in Bluetooth 5.0. Users can complete wireless setup and monitoring through the Jiwei Smart Control mini-program. It also supports remote commissioning, cloud-based monitoring, and software upgrades. Therefore, it helps improve maintenance efficiency and simplify routine operation.
A simple integrated display makes local reading easier during installation, commissioning, and daily inspection. This helps users check instrument status directly on site without relying only on the control system.
Stable Signal Performance in Compact Installations
The JWradar-22 level transmitter uses an intelligent echo-learning algorithm to improve signal quality. It can suppress false echoes, separate multiple echoes, and track the true target signal in changing process conditions. As a result, the instrument keeps stable and accurate performance over time.
Its compact structure and lightweight UV-resistant housing make it suitable for outdoor use and installations with limited space. It is also a practical alternative to ultrasonic instruments in applications where users want more stable performance and easier long-term maintenance.
Typical Applications
JWradar-22 level transmitter is widely used in river and open-channel monitoring, sewage and wastewater treatment, reservoir and sluice gate systems, drainage and flood warning projects, general industrial liquid tanks, and short-range bulk solid applications. It is especially useful in water-related systems that need compact installation, local display, and stable non-contact measurement.
For other level solutions, see the [JWradar-21 Radar Level Transmitter] and the [Uson-11 Ultrasonic Level Transmitter]. The device also supports [Modbus communication] for easier integration into industrial and utility control systems.
