Can a Magnetic Level Gauge Really Work Without Electricity?
In chemical processing, oil and gas, water treatment, pharmaceuticals, food processing, and storage tank applications, there is one type of level instrument that is particularly easy to recognize.

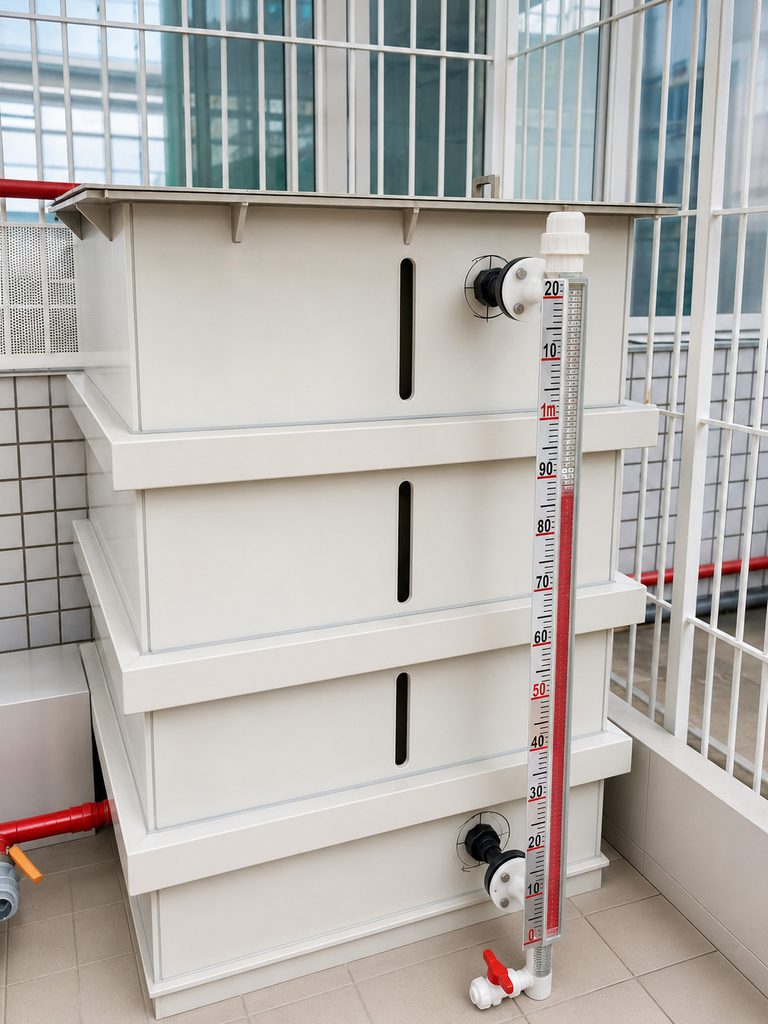

A vertical chamber is mounted alongside a vessel or tank. On the outside of the chamber is a row of red-and-white, or sometimes red-and-black, magnetic flaps. As the liquid level inside the vessel rises or falls, the color of the indicator changes accordingly.
This instrument is known as a magnetic level gauge, also commonly called a magnetic level indicator (MLI) or magnetic float level gauge.
For people seeing this type of level gauge for the first time, one question often comes to mind:
How can a magnetic level gauge continuously indicate the liquid level without a display screen, a 220 V power supply, or even an electrical cable?
The answer is surprisingly simple:
A basic magnetic level gauge uses buoyancy and magnetic force to provide local level indication. No electrical energy is required for the fundamental indicating function.
In other words, as long as the liquid level inside the vessel changes, the magnetic level gauge can use mechanical movement and magnetic coupling to make that change visible.
This is one of the major differences between a magnetic level gauge and electronic instruments such as radar level transmitters, ultrasonic level sensors, and submersible level transmitters.
1. The First Reason a Magnetic Level Gauge Needs No Power: Buoyancy
To understand why a magnetic level gauge does not require electricity, we first need to understand one basic physical principle: buoyancy.
When a properly designed float is placed in a liquid, it rises or falls with the liquid surface.
A magnetic level gauge makes direct use of this principle.

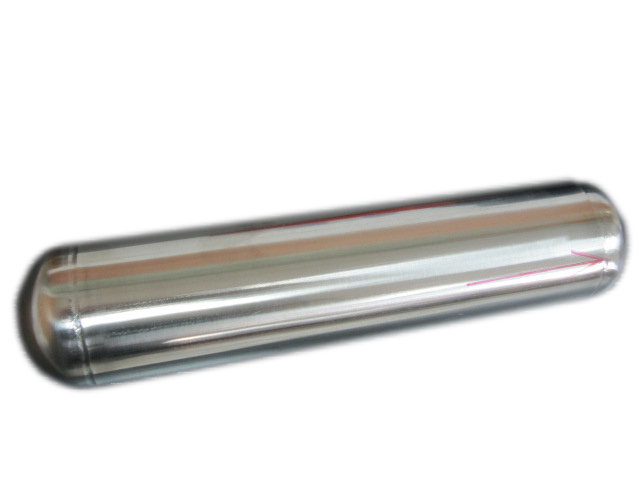

Inside the main chamber of the gauge is a specially designed magnetic float. The float contains a permanent magnet assembly, and its density is selected according to the density or specific gravity of the process liquid.
When the liquid level in the vessel rises, the level inside the magnetic level gauge chamber also rises. Buoyancy causes the magnetic float to move upward.
When the liquid level decreases, the float moves downward.
Therefore:
The vertical position of the float corresponds directly to the liquid level.
This entire process is driven by physical forces. No electric motor, electronic circuit, or powered actuator is required.
However, this raises another question.
The float is located inside a sealed metal chamber. If operators cannot see the float directly, how can they know its position?
That is where the second key principle comes into play: magnetic coupling.
2. How Can External Flaps Indicate the Position of an Internal Float?
The word “magnetic” in magnetic level gauge is the key to understanding the technology.
The float inside the chamber contains permanent magnets. As the float moves up and down with the liquid level, its magnetic field moves with it.

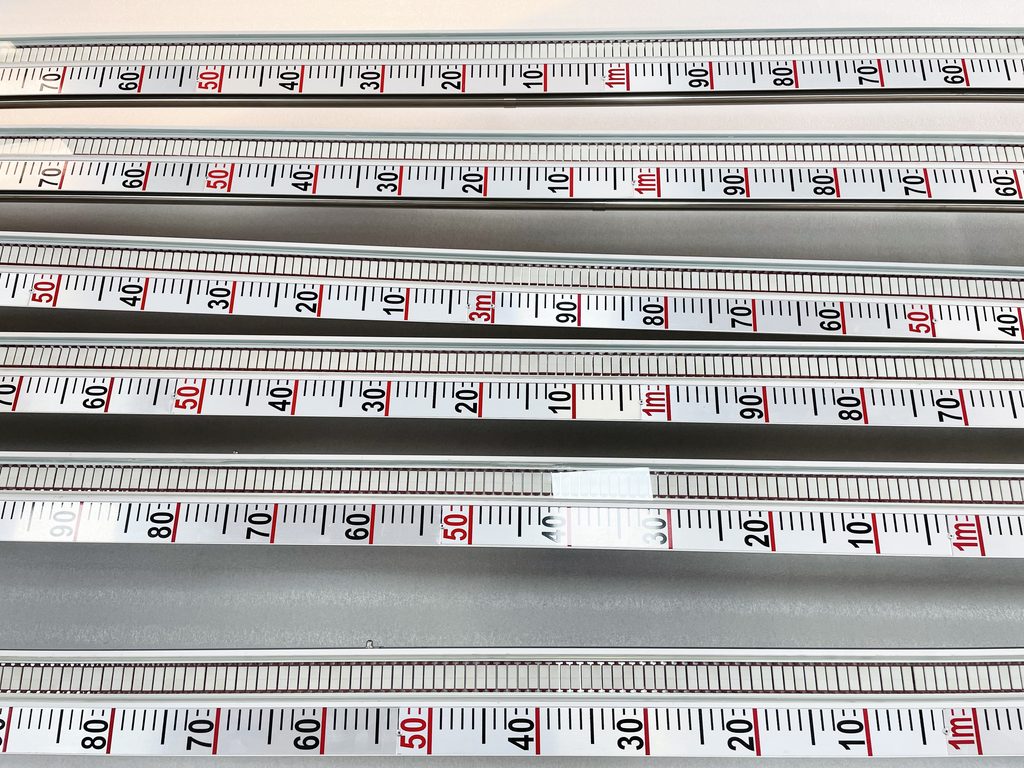

Outside the chamber is a vertical indicator containing a series of small, rotatable magnetic flaps or rollers. These indicators are normally designed with two contrasting colors.
As the internal magnetic float passes a particular position, its magnetic field causes the corresponding external flaps to rotate approximately 180 degrees, changing the visible color.
For example:
- The area above the liquid level may appear white.
- The area below the liquid level may appear red.
- The boundary between red and white indicates the current liquid level.
Because the internal float and the external indicator interact through a magnetic field, there is no need for a mechanical linkage to penetrate the chamber wall. There is also no need for an electrical connection between the float and the indicator.
This principle is commonly referred to as magnetic coupling.
The complete operating sequence of a magnetic level gauge can therefore be summarized as:
Vessel level changes → Chamber level changes → Magnetic float moves → Magnetic field moves → External flaps rotate → Actual liquid level is displayed
None of these basic steps requires an external power supply.
3. How Does Liquid from the Tank Enter the Magnetic Level Gauge Chamber?
Another common question is:
If the magnetic level gauge is mounted outside the tank, how does it know the liquid level inside the tank?
The answer is based on the principle of communicating vessels.
A typical side-mounted magnetic level gauge is connected to the process vessel through upper and lower process connections.
The process liquid enters the gauge chamber through these connections. Under normal operating conditions, with the same liquid and balanced pressure, the level inside the chamber corresponds to the level inside the vessel.
This means that the indicator does not need to be installed directly inside the storage tank.
By measuring the liquid level in the external chamber, the magnetic level gauge can provide an indication of the actual liquid level inside the vessel.
This is why magnetic level gauges are frequently installed alongside large storage tanks, pressure vessels, separators, process tanks, and reactors.
4. No Power Does Not Mean Limited Functionality
Because a magnetic level gauge can operate without electricity, some users assume that it is simply a basic mechanical sight gauge.
That is not the case.
One of the most useful engineering characteristics of a magnetic level gauge is that:
Local level indication and remote electronic signal transmission can operate as separate functions.
For example, a basic magnetic level gauge can operate entirely without electricity and provide only local visual indication.
If the plant also needs to transmit the liquid level to a PLC, DCS, control room, or monitoring system, a level transmitter can be added to the magnetic level gauge.
The result is:
Local mechanical indication + remote electronic level transmission
Operators standing beside the vessel can directly observe the level through the magnetic indicator.
At the same time, the control room can receive continuous level data from the transmitter.
This design also provides an important practical advantage. In many configurations, if electrical power to the transmitter or control system is lost, the local magnetic indicator can continue to display the liquid level.
For industrial plants requiring an independent local level indication, this can be extremely useful.
5. Why Do Some Magnetic Level Gauges Have Electrical Cables?
It is important to distinguish between two different statements:
“The magnetic indicator does not require electricity” does not mean that every magnetic level gauge system is completely electrical-free.
The basic local indicator can operate without external power.
However, depending on the process automation requirements, additional electrical accessories can be installed.
Remote Level Transmitter
A magnetic level gauge can be equipped with a transmitter that converts the liquid level into a standard industrial signal, such as 4–20 mA.
This signal can then be transmitted to a PLC, DCS, data acquisition system, or control room.
The transmitter normally requires appropriate power or loop power.
High- and Low-Level Alarm Switches
Magnetic switches can be mounted at specified positions along the level gauge to provide high-level alarms, low-level alarms, or process interlock functions.
Electrical requirements depend on the type of switch and control configuration being used.
Digital Communication
For modern process automation systems, magnetic level gauges can also be combined with transmitters supporting communication protocols such as HART or RS485, depending on the instrument design.
These electronic components require suitable electrical connections.
Therefore, the technically accurate statement is:
The basic local indication function of a magnetic level gauge does not require an external power supply. Optional remote transmission, alarms, and communication functions may require electrical power.
This distinction is important when selecting a magnetic level gauge for an industrial application.
6. What Are the Advantages of a Magnetic Level Gauge That Does Not Require Power?
Level Can Still Be Observed During a Power Failure
With a basic mechanical magnetic level indicator, local level indication is not dependent on electrical power.
As long as the float, chamber, and magnetic indicator are operating correctly, operators can continue to observe the liquid level even if electrical power is unavailable.
This is valuable for on-site inspection and plant operation.
No Continuous Power Required for Local Display
Electronic displays normally require a power source to function.
A magnetic level gauge uses mechanical movement and magnetic coupling, eliminating the need for continuous electrical power for local indication.
Clear and Intuitive Level Indication
High-contrast red-and-white or red-and-black magnetic flaps provide a clearly visible liquid level boundary.
Operators can quickly identify the approximate level without interpreting a complex electronic display.
Indicator Is Isolated from the Process Liquid
The magnetic float is contained inside the sealed chamber, while the visual indicator is mounted externally.
The process liquid does not normally come into direct contact with the external indicator assembly.
This magnetic coupling design eliminates the need for a mechanical linkage to penetrate the pressure boundary.
Suitable for Continuous Level Indication
Unlike a point level switch, which only detects whether the liquid has reached a specific position, a magnetic level gauge provides continuous visual indication throughout its measuring range.
This makes it suitable for tanks, vessels, separators, and other process equipment where operators need to observe changing liquid levels.
7. Which Industries Use Magnetic Level Gauges?
Because of their simple operating principle and clear local indication, magnetic level gauges are widely used across process industries.
Typical applications include storage tanks, separators, and process vessels in the oil and gas and petrochemical industries; reactors, intermediate tanks, and raw material tanks in chemical processing; water tanks and auxiliary systems in power plants; storage vessels in environmental and water treatment facilities; and various liquid-level applications in pharmaceutical, food, and other process industries.
Different materials and configurations are available depending on the process conditions.
For example, stainless steel magnetic level gauges are suitable for many general industrial liquids. For corrosive chemicals, suitable corrosion-resistant wetted materials or lined constructions may be required.
High-temperature, high-pressure, cryogenic, or unusual-density applications may also require specially engineered designs.
Therefore, although the working principle of a magnetic level gauge is relatively straightforward, proper engineering selection still depends on the actual process conditions.
8. Selecting a Magnetic Level Gauge: Measuring Range Is Not Enough
When purchasing a magnetic level gauge, some users initially provide only one specification:
“I need a two-meter gauge.”
Or:
“My measuring range is three meters.”
Measuring range is certainly important, but it is not sufficient for proper instrument selection.
Several other parameters must be considered.
Process Liquid and Specific Gravity
The design of the magnetic float is directly related to the density or specific gravity of the process liquid.
If the actual liquid density differs significantly from the design conditions, float performance and indication accuracy may be affected.
Operating Temperature
Temperature affects the selection of chamber materials, seals, float design, and other instrument components.
Operating Pressure
The measuring chamber is a pressure-containing component. Its design and pressure rating must be appropriate for the actual process pressure.
Corrosiveness of the Liquid
Acids, alkalis, salts, solvents, and other chemicals have different compatibility requirements.
Suitable wetted materials should therefore be selected according to the process medium.
Installation Configuration
Common magnetic level gauge configurations include side-mounted and top-mounted designs.
The correct configuration depends on the vessel design, available installation space, and process conditions.
Remote Transmission and Alarm Requirements
If only local visual indication is required, a basic magnetic level gauge may be sufficient.
If the liquid level needs to be transmitted to a PLC or DCS, an appropriate level transmitter should be added.
If high- or low-level alarms are required, magnetic switches or other suitable alarm devices may also be installed.
Professional magnetic level gauge selection should therefore be based on complete process data rather than measuring length alone.
9. Magnetic Level Gauge vs. Radar Level Transmitter: What Is the Difference?
Both magnetic level gauges and radar level transmitters can be used to measure liquid level, but they operate using completely different technologies.
A radar level transmitter uses electromagnetic waves to determine the liquid level through non-contact or guided-wave measurement. Because signal generation, processing, and calculation are electronic, radar instruments normally require electrical power.
A magnetic level gauge, by comparison, uses buoyancy and magnetic coupling for local indication. Its basic visual indication function requires no electrical power.
This does not mean that one technology is simply “better” than the other.
Radar level measurement may be preferable when applications require non-contact measurement, long measuring distances, advanced diagnostics, or intelligent digital output.
A magnetic level gauge may offer significant advantages when the application requires clear local indication, reduced dependence on electrical power, or an independent visual reference at the vessel.
In some industrial installations, both technologies may even be used together, providing independent measurements based on different physical principles.
10. Why Are “No-Power” Magnetic Level Gauges Still Widely Used Today?
Modern industry is becoming increasingly automated and digital.
PLCs, DCS platforms, industrial IoT systems, and intelligent sensors are now widely used throughout process plants.
So why is a seemingly traditional instrument like the magnetic level gauge still so common?
Because industrial measurement is not only about intelligence and digitalization. It is also about reliability, visibility, simplicity, and independence.
Electronic systems can provide remote monitoring and automatic control, while a mechanical local indicator gives operators an immediate physical reference at the equipment.
A magnetic level gauge combines these two requirements particularly well.
Its basic local indication relies on buoyancy and magnetic force and therefore requires no external electrical power.
When automation is required, remote level transmitters and alarm switches can be added.
For this reason, a magnetic level gauge is not incompatible with modern industrial automation. Instead, it can provide a practical combination of local visual level indication and automated process monitoring.
11. Conclusion: Why Can a Magnetic Level Gauge Work Without Electricity?
The working principle of a magnetic level gauge can be summarized in one sentence:
Liquid buoyancy moves a magnetic float, and the magnetic field from that float drives an external indicator to display the liquid level.
The buoyancy comes from the liquid itself.
The movement of the float comes from changes in the liquid level.
The movement of the external flaps comes from magnetic coupling between permanent magnets.
Therefore, the basic indication process does not require external electrical energy.
This is why a magnetic level gauge can continuously display the level inside a storage tank or process vessel even though it has no electronic screen and no power cable.
If 4–20 mA remote transmission, PLC/DCS integration, high- and low-level alarms, or digital communication are required, suitable electronic modules can be added.
Users can therefore select either:
A basic magnetic level gauge for local indication only
or
A magnetic level gauge with local indication + remote transmission + alarm functions
This combination of a simple physical operating principle, clear local indication, and compatibility with modern automation systems explains why magnetic level gauges continue to be widely used throughout the process industries.
Frequently Asked Questions About Magnetic Level Gauges
Does a magnetic level gauge require a 220 V power supply?
A basic magnetic level gauge normally does not require a 220 V power supply for local level indication. It uses a magnetic float and magnetic indicator to display the liquid level mechanically. If a transmitter, alarm, or other electronic accessory is installed, the power requirements will depend on the specific device.
Can a magnetic level gauge still work during a power failure?
Yes, the basic magnetic local indicator can normally continue to display the liquid level during a power failure, provided that the float, chamber, and indicator are functioning correctly. However, remote signals and other electrically powered accessories may stop working if their power supply is lost.
Does a magnetic level gauge contain a sensor?
A basic local magnetic level gauge does not necessarily require an electronic sensor. Its primary components include the magnetic float, measuring chamber, and magnetic indicator. If remote level transmission is required, an additional sensing or transmitter system can be installed.
Why does a magnetic level gauge use red and white indicators?
The external flaps or rollers typically have two contrasting colors. When the internal magnetic float passes them, its magnetic field causes the indicators to rotate, exposing the opposite color. The boundary between the two colors represents the current liquid level.
Can a magnetic level gauge provide a 4–20 mA output?
Yes. A magnetic level gauge can be equipped with a remote level transmitter to convert the liquid level into a standard 4–20 mA signal for transmission to a PLC, DCS, or other control system. The electronic transmitter normally requires an appropriate electrical connection or loop power.
Is a magnetic level gauge suitable for every liquid?
No. Proper selection depends on several process parameters, including liquid density, viscosity, corrosiveness, operating temperature, operating pressure, and the tendency of the medium to crystallize, coat, or accumulate deposits.
Special chemical media, high-temperature or high-pressure applications, and liquids prone to crystallization should be carefully evaluated before selecting a magnetic level gauge.
