1. Introduction: Why Look for a VEGASWING 61 Replacement?
In modern industrial automation, liquid level detection plays a critical role in process safety, production stability, and equipment protection. Tuning fork level switches are widely used in chemical plants, oil and gas facilities, LNG terminals, storage tanks, food and beverage production, pharmaceutical processes, water treatment systems, and pump protection applications.
Among imported tuning fork level switches, VEGASWING 61 is a well-known product used for point level detection of liquids. However, many users are now looking for a reliable alternative due to several practical reasons: high procurement cost, long delivery time, localization requirements, maintenance convenience, spare parts availability, and the need for better cost performance.
The Jiwei Ring-11 tuning fork level switch is designed as a high-performance liquid level switch for demanding industrial applications. With its compact 40 mm fork design, SIL2/3 certification, high-temperature resistance up to 400°C, explosion-proof approvals, food-grade surface treatment, gas-tight lead-through, and competitive price, Ring-11 can be used as a practical replacement for VEGASWING 61 and similar imported tuning fork level switches.
For users searching for a VEGASWING 61 replacement, VEGA tuning fork level switch alternative, or cost-effective liquid level switch, Jiwei Ring-11 provides a strong solution.
2. Working Principle of Jiwei Ring-11 Tuning Fork Level Switch
The Ring-11 tuning fork level switch works based on the vibration frequency principle. The fork body vibrates at its natural resonance frequency. When the fork is exposed to air, it vibrates at one frequency. When the liquid level rises and covers the fork, the vibration frequency changes. The electronic module detects this frequency shift and converts it into a switching signal.
This principle is widely used in liquid point level detection because it is simple, stable, and reliable. It does not require complex calibration and is not easily affected by changes in dielectric constant, conductivity, bubbles, pressure, or moderate changes in viscosity.
Ring-11 Tuning Fork Level Switch uses precision tuning and anti-interference technology to ensure accurate liquid level detection. It is suitable for both high-level and low-level detection, including:
High-level alarm, low-level alarm, overfill protection, dry-run protection, pump protection, tank level control, pipeline liquid detection, and safety interlock applications.
Because Ring-11 and VEGASWING 61 are both vibration-based tuning fork level switches, Ring-11 can replace VEGASWING 61 in many existing applications, provided that process connection, electrical output, approval requirements, and installation conditions are matched.

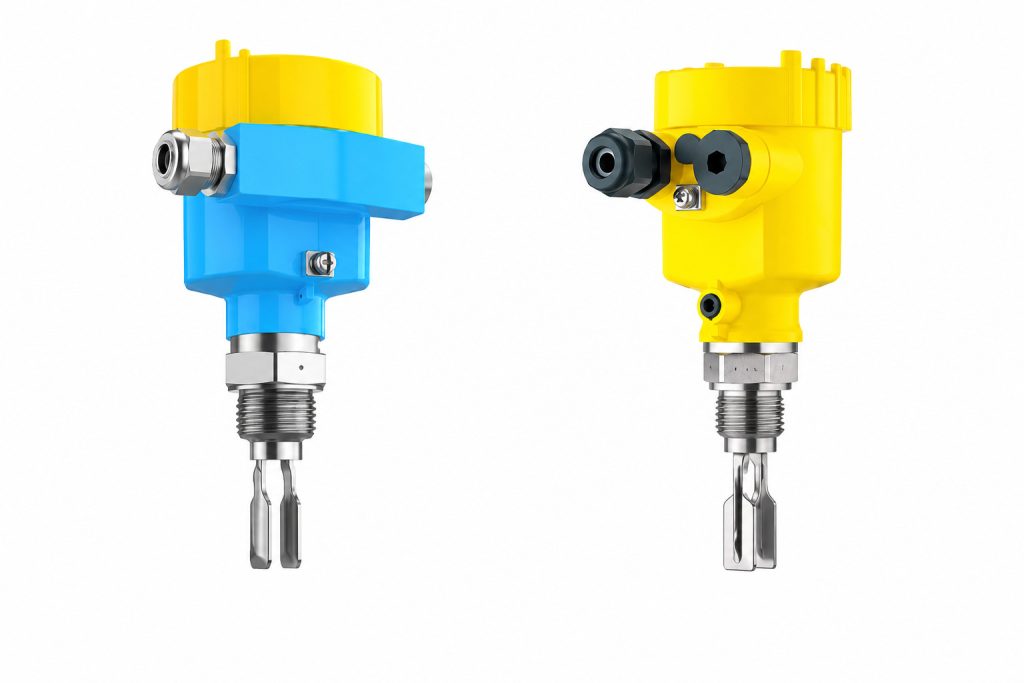

3. Comparison Table: Jiwei Ring-11 vs. Imported Brand Product such as VEGASWING 61
The following table can be used directly in the article to show the key differences between Jiwei Ring-11 and imported tuning fork level switches such as VEGA products.
| Comparison Items | Jiwei Ring-11 | VEGASWING 61 |
|---|---|---|
| Product design | Compact fork body only 40 mm long, with pre-adjusted resonance for improved sensitivity and reliability | Conventional imported tuning fork design |
| Vibrating frequency and detecting method | 1180–1210 Hz vibrating frequency | 1150–1250 Hz vibrating frequency |
| Minimum measurable density | 0.5 g/cm³ | 0.5 g/cm³ |
| Maximum process temperature | 400°C | 250°C |
| Fork body material | 316L, 316L coated with Enamel, PTFE, PFA, Hastelloy | 316L, 316 coated with Enamel, ECTFE or PFA |
| Flameproof enclosure approval | Ex db IIC T6…T1 Gb; Ex db IIC T6…T1 Gb + Ex tb IIIC T440°C…T80°C Db | Ex d IIC T6 |
| Intrinsic safety approval | Ex ia IIC T1…T6 Ga | Ex ia IIC T6 |
| Ingress protection rating | IP67 | IP67 |
| Price | Low, approximately 2/3 of VEGA | High |
This comparison clearly shows that Ring-11 is not only a replacement option, but also a competitive upgrade in several key areas, especially process temperature, explosion-proof approvals, material options, and cost performance.
4. Compact 40 mm Fork Design for Higher Sensitivity and Easier Installation
One of the most important advantages of Jiwei Ring-11 is its compact fork design. The fork body is only 40 mm long, which makes it suitable for small tanks, narrow pipelines, compact vessels, and limited installation spaces.
In many industrial sites, installation space is limited. A long fork body may be difficult to install in small pipelines or side-mounted positions. Ring-11’s short fork design helps solve this problem while maintaining high detection sensitivity.
The pre-adjusted resonance design also improves reliability. Since the fork is precisely tuned before delivery, users can achieve stable switching performance without complicated on-site adjustment. This is especially useful in applications where fast commissioning and reduced maintenance are important.
For users replacing VEGASWING 61, the compact design of Ring-11 provides more installation flexibility. It is suitable for both new projects and retrofit projects where space, process connection, and maintenance access must be considered.
5. Low-Density Liquid Detection Down to 0.5 g/cm³
Liquid density is an important factor in tuning fork level switch selection. Some light liquids, solvents, hydrocarbons, and LNG-related media have relatively low density. If the instrument is not sensitive enough, it may fail to detect the liquid reliably.
Ring-11 can detect liquids with a minimum density of 0.5 g/cm³, making it suitable for many low-density liquid applications. This includes light oils, chemical solvents, hydrocarbons, liquefied gases, and LNG-related processes.
The ability to detect low-density liquids is especially important in industries such as oil and gas, petrochemical, LNG storage and transportation, fine chemical production, and specialty chemical processing.
In the comparison table, both Ring-11 and imported VEGA-type products can reach 0.5 g/cm³ minimum measurable density. However, Ring-11 combines this capability with a lower price, compact 40 mm fork structure, and wider high-temperature performance. This makes it a strong option for users who need a cost-effective VEGASWING 61 replacement.
6. High-Temperature Resistance up to 400°C
One of the strongest advantages of Jiwei Ring-11 is its maximum process temperature of 400°C. In comparison, the imported brand product listed in the comparison table has a maximum process temperature of 250°C.
This difference is significant for high-temperature industrial applications. Many processes in chemical, petrochemical, energy, thermal oil, and high-pressure systems require instruments that can withstand elevated temperatures for a long time.
Typical high-temperature applications include:
High-temperature reactors, hot oil tanks, steam-heated vessels, high-temperature separation systems, chemical storage tanks, refinery process units, and special high-temperature liquid pipelines.
Using a level switch with higher temperature resistance gives the user a larger safety margin. It can help reduce failure risk, extend service life, and improve long-term reliability.
For applications where VEGASWING 61 or similar imported products are close to their temperature limit, Ring-11 provides an upgraded replacement solution. It can help users improve process safety while reducing procurement cost.
7. Explosion-Proof and Intrinsic Safety Approvals for Hazardous Areas
Hazardous area applications require strict safety approvals. In chemical plants, oil depots, gas facilities, LNG terminals, and hazardous liquid storage areas, level switches must meet explosion-proof or intrinsic safety requirements.
Ring-11 offers strong explosion-proof performance. According to the comparison table, its flameproof enclosure approvals include:
Ex db IIC T6…T1 Gb
Ex db IIC T6…T1 Gb + Ex tb IIIC T440°C…T80°C Db
Its intrinsic safety approval includes:
Ex ia IIC T1…T6 Ga
Compared with the imported product listed in the table, Ring-11 offers a wider temperature class range and gas/dust explosion-proof coverage. This makes it suitable for both gas hazardous areas and dust hazardous areas.
For petrochemical and chemical users, explosion-proof certification is not optional. It is a key requirement for safety compliance. Ring-11’s explosion-proof and intrinsic safety approvals make it a reliable choice for overfill protection, dry-run protection, pump protection, and safety interlock systems in hazardous areas.
8. SIL2/3 Certification for Safety-Related Applications
In high-risk industrial processes, a liquid level switch may be part of a safety instrumented system. For example, it may trigger an emergency shutdown, stop a pump, prevent tank overflow, or protect equipment from dry running.
Ring-11 is designed for safety-related applications and is highlighted as a SIL2/3 certified level product. This makes it suitable for users who need higher safety integrity in critical applications.
SIL certification is especially important in:
Overfill prevention systems, pump dry-run protection, hazardous liquid tank monitoring, chemical reactor protection, LNG storage safety systems, and emergency shutdown systems.
When replacing VEGASWING 61, users often need to maintain the safety level of the existing control system. Ring-11’s SIL2/3 capability gives users confidence when applying it in safety-related projects.
9. Multiple Output Options for Easy System Integration
A successful replacement depends not only on the sensor itself, but also on whether the output signal can match the existing control system.
Ring-11 supports multiple output options, including:
Relay output, two-wire output, NAMUR output, and transistor output.
These options allow Ring-11 to connect with various PLC, DCS, safety barriers, isolation barriers, control panels, and alarm systems.
For retrofit projects, this is very important. If the existing VEGASWING 61 uses a specific signal type, users can select a matching Ring-11 output version to reduce wiring changes and commissioning time.
This compatibility helps Ring-11 serve as a practical replacement for imported tuning fork level switches in both new and existing plants.
10. Reliable Performance in Foam, Turbulence, Vibration, and Buildup
Industrial sites are rarely perfect. Liquid surfaces may be turbulent, foamy, sticky, or unstable. Pumps may create vibration. Agitators may cause splashing. Process media may form buildup on the sensor.
Ring-11 is designed to remain reliable under these difficult conditions. It supports stable liquid level detection in the presence of:
Foam, turbulence, vibration, medium fluctuation, and buildup.
This advantage is important for real-world applications. Many level switch failures are not caused by normal liquid detection, but by process interference. A level switch that performs well only in clean water may not be reliable in actual chemical or industrial processes.
Ring-11’s anti-interference design helps reduce false alarms and missed alarms. This can reduce unnecessary shutdowns, protect pumps, prevent overflow, and improve production continuity.
For users replacing VEGASWING 61 in challenging applications, Ring-11 provides dependable field performance.
11. Food-Grade Surface Treatment with Ra < 0.5 μm
In food, beverage, pharmaceutical, dairy, and biotechnology industries, hygiene is a key requirement. Instruments must be easy to clean and should not cause material buildup or contamination.
Ring-11 offers a food-grade surface design with wetted surface roughness Ra < 0.5 μm. A smoother surface helps reduce residue, improves cleaning efficiency, and supports sanitary process requirements.
This makes Ring-11 suitable for:

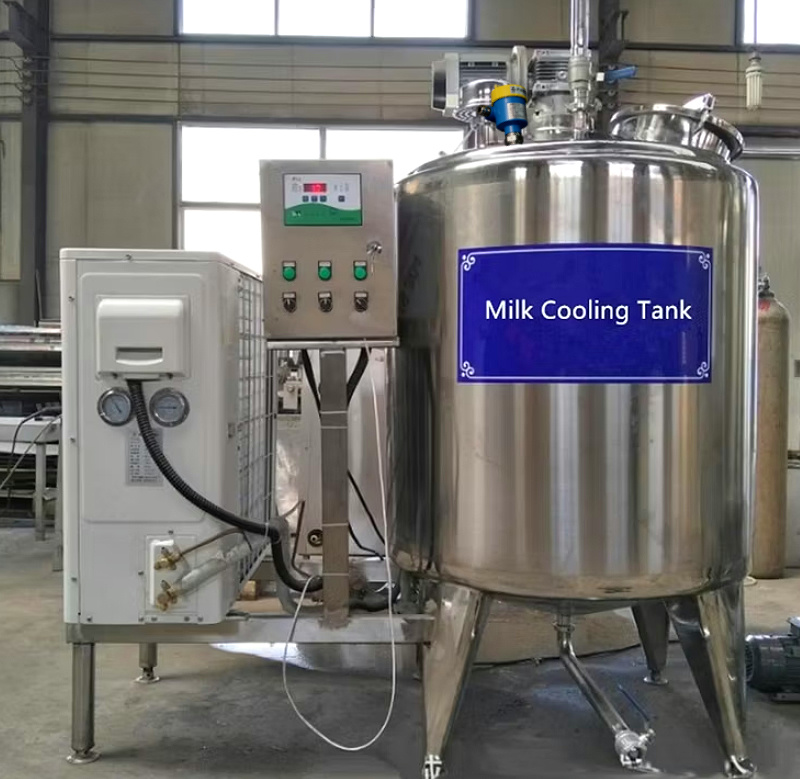

Food storage tanks, beverage tanks, dairy processing tanks, fermentation tanks, pharmaceutical liquid tanks, CIP systems, and SIP systems.
The compact 40 mm fork design also makes Ring-11 suitable for hygienic vessels and small-diameter pipelines. For users who need to replace imported tuning fork level switches in food-grade applications, Ring-11 offers a practical and cost-effective alternative.
12. Strong Material Options for Corrosive and Special Media
Different liquids require different wetted materials. Standard stainless steel may be suitable for water, oil, and many general liquids, but corrosive chemicals may require coated or special alloy materials.
Ring-11 offers multiple fork body material options, including:
316L stainless steel, 316L coated with Enamel, PTFE, PFA, and Hastelloy.
These material options help Ring-11 adapt to a wide range of chemical media, including corrosive liquids, acids, alkalis, solvents, and special process fluids.
Compared with imported brand products, Ring-11 offers competitive material flexibility while maintaining lower cost. This makes it suitable for chemical plants and process industries that need reliable performance but also need to control project budgets.
13. Gas-Tight Lead-Through for High-Temperature and High-Pressure Safety
Ring-11 also features a gas-tight lead-through design. This structure helps prevent corrosion, leakage, and gas penetration under high-temperature and high-pressure conditions.
In harsh industrial applications, sealing reliability is extremely important. If corrosive gas or liquid enters the electronics housing, the instrument may fail. If leakage occurs at the process connection or lead-through structure, it may create safety risks.
The gas-tight lead-through design improves long-term reliability and makes Ring-11 suitable for demanding applications such as:
Chemical processes, LNG systems, high-pressure vessels, corrosive media storage, and high-temperature pipelines.
For users looking for a VEGASWING 61 replacement in high-risk applications, this feature adds another layer of safety and reliability.
14. Lower Price and Better Cost Performance
Price is one of the most important reasons why users look for alternatives to imported level switches. Imported products often have higher purchase costs, higher spare parts costs, and longer delivery times.
According to the comparison table, the price of Ring-11 is low, approximately 2/3 of VEGA. This means users can reduce procurement costs while still obtaining strong performance, reliable approvals, and broad application coverage.
For large projects that require many level switches, the cost difference can be significant. Replacing imported tuning fork level switches with Ring-11 can help reduce total project investment without sacrificing key performance.
This makes Ring-11 especially attractive for:
New plant construction, localization replacement projects, spare parts replacement, batch procurement, OEM equipment integration, and cost optimization projects.
15. Why Ring-11 Can Replace VEGASWING 61
Ring-11 can replace VEGASWING 61 and similar imported tuning fork level switches for several reasons.
First, both products use the tuning fork vibration principle for liquid point level detection. This means the basic measuring logic is the same.
Second, Ring-11 supports the same major application types, including high-level detection, low-level detection, overfill protection, dry-run protection, and pump protection.
Third, Ring-11 offers multiple output options such as relay, two-wire, NAMUR, and transistor, making it easy to integrate into existing PLC, DCS, and safety systems.
Fourth, Ring-11 provides high safety performance with SIL2/3 certification, explosion-proof approvals, intrinsic safety approval, and IP67 protection.
Fifth, Ring-11 has clear advantages in maximum process temperature, compact fork design, material options, food-grade surface treatment, and price.
Therefore, Ring-11 is not just a low-cost substitute. It is a practical, reliable, and performance-oriented replacement for VEGASWING 61 in many industrial liquid level applications.
16. Selection Tips Before Replacing VEGASWING 61 with Ring-11
Before replacing VEGASWING 61 with Ring-11, users should check the following technical details:
Process connection size, thread or flange standard, insertion length, installation direction, medium density, process temperature, process pressure, explosion-proof classification, SIL requirement, output signal type, power supply voltage, control logic, and cable entry requirement.
If these parameters match the existing installation and process requirements, Ring-11 can be selected as a replacement for VEGASWING 61.
For critical safety applications, users should also confirm the required approval documents, safety manuals, and site certification requirements before final selection.
17. Conclusion: Ring-11 Is a Reliable and Cost-Effective VEGASWING 61 Alternative
Jiwei Ring-11 tuning fork level switch is a high-performance liquid level switch designed for demanding industrial applications. Compared with imported brand products such as VEGA tuning fork level switches, Ring-11 offers strong advantages in compact design, high-temperature resistance, explosion-proof approval, SIL2/3 safety, material options, food-grade surface finish, gas-tight lead-through, and cost performance.
With a 40 mm fork body, 0.5 g/cm³ minimum measurable density, 400°C maximum process temperature, IP67 protection, multiple output options, and a price approximately 2/3 of VEGA, Ring-11 is a strong choice for users seeking a VEGASWING 61 replacement.
For chemical plants, oil and gas facilities, LNG projects, food and beverage production, pharmaceutical processes, storage tanks, pipelines, pump protection systems, and overfill prevention systems, Ring-11 can provide reliable liquid level detection and help reduce dependence on imported instruments.
If you are looking for a VEGA tuning fork level switch alternative, imported liquid level switch replacement, or cost-effective SIL tuning fork level switch, Jiwei Ring-11 is a solution worth considering.
