1. Why Are Compact Level Switches Becoming More Popular?
In industrial equipment, water treatment systems, mechanical cooling units, lubrication systems, and small storage tanks, level detection may seem like a basic function, but it directly affects equipment safety, pump and valve interlocking, overflow prevention, and maintenance efficiency. If the liquid level is too high, it may cause overflow, contamination, or even safety risks. If the liquid level is too low, it may lead to pump dry running, insufficient cooling, lubrication failure, or production interruption. Therefore, choosing a stable, sensitive, and easy-to-install compact level switch is essential for many general industrial applications.
Although large level instruments offer comprehensive functions, they often come with limitations when used in small water tanks, oil tanks, coolant tanks, or pipeline point level detection applications. These limitations may include insufficient installation space, higher cost, complex installation, and difficult maintenance. By contrast, compact level switches are better suited for point level control. They can perform high and low level alarms, pump start-stop control, refill reminders, and overflow protection within limited installation spaces. This helps users meet automation requirements while reducing project costs.
The Jiwei Ring-21 compact tuning fork level switch is an economical limit control switch designed for these types of applications. It features a compact size and lightweight structure, making it especially suitable for small containers, narrow pipelines, and equipment where installation space is limited. It can be used for point level measurement and alarm control of common liquid media.
2. Working Principle of the Ring-21 Compact Tuning Fork Level Switch
The Ring-21 is a tuning fork level switch. Its core operating principle is to detect the change in vibration frequency of the fork when it is exposed to air or immersed in liquid. Under normal conditions, the tuning fork vibrates at a fixed frequency. When the liquid reaches and covers the fork, the resonant frequency decreases significantly. The detection circuit identifies this frequency change and outputs a switching signal, which can then trigger an alarm, pump or valve action, or control system interlock.
This detection method does not rely on the mechanical movement of a float, nor does it require complex continuous measurement algorithms. It offers direct response, simple structure, and high reliability. For clean water, coolant, light oil, low-corrosive liquids, and general industrial liquid storage applications, a tuning fork level switch can provide stable point level detection and reduce risks caused by float blockage, missed manual inspections, or delayed level judgment.
3. Key Features of the Ring-21
3.1 Compact Structure for Small Tanks and Limited Spaces

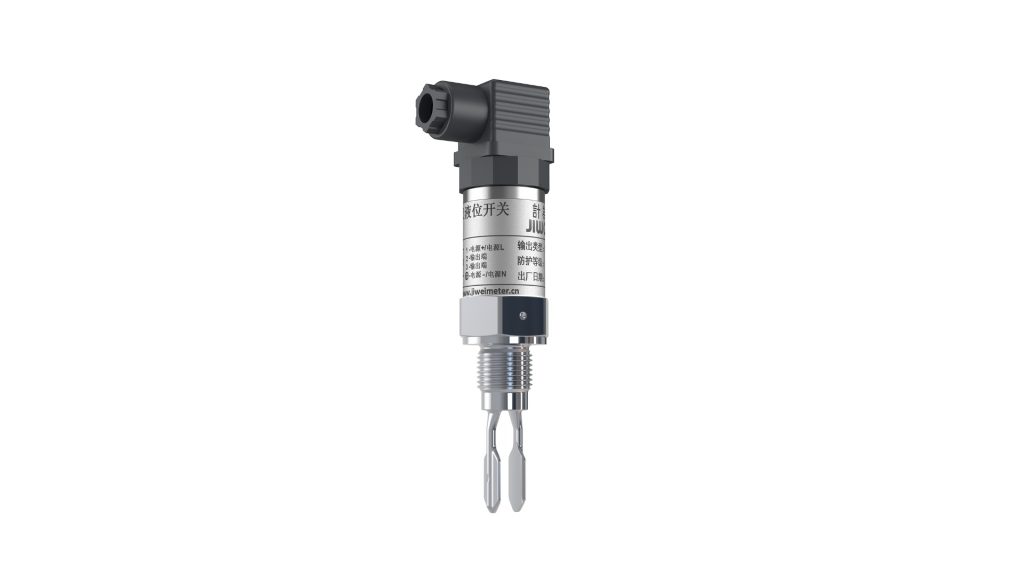

The Ring-21 compact tuning fork level switch has an overall length of approximately 160.5 mm, a maximum diameter of about 31.5 mm, and a fork length of only 38 mm. Compared with conventional level instruments, it is easier to install in small storage tanks, water tanks, oil tanks, pipelines, or equipment with limited internal space. For retrofit projects on existing equipment, the compact design can effectively reduce tank opening, bracket installation, and piping modification work, thereby lowering installation costs.
3.2 Economical and Practical for Cost-Sensitive Projects
In many general applications, users do not need complex continuous level measurement. They only need to know whether the liquid has reached a high or low point. The Ring-21 is positioned as an economical level limit control switch and can replace some traditional float switches. It helps users achieve automated level control at a reasonable cost. For batch equipment matching, OEM equipment, small water treatment systems, and general industrial equipment, its cost-performance advantage is clear.
3.3 Sensitive Detection and Fast Response
The Ring-21 detects liquid level based on the change in tuning fork vibration frequency. It is suitable for media with a density as low as 0.7 g/cm³, meeting the point level measurement requirements of many common liquids. With a measurement deviation of up to ±1 mm and repeatability of 0.5 mm, it can output a signal promptly when the liquid reaches the set position. This helps the control system quickly complete alarm, refilling, pump stop, or pump start actions.
3.4 Reliable Material for Long-Term Operation
The housing and process connection of the Ring-21 are made of 316L stainless steel, providing good corrosion resistance and mechanical strength. The product is available with different connection options, and the protection rating can reach IP65 or IP66/IP67, making it suitable for dustproof, waterproof, and long-term operation requirements in general industrial sites. For water tanks, coolant tanks, lubricating oil tanks, and similar equipment, its durable structure helps reduce maintenance frequency.
3.5 Easy Installation and Convenient Maintenance
The Ring-21 does not require complicated commissioning. After installation, it can be used as a high or low level alarm switch or as a pump and valve interlock signal. During installation, the orientation of the tuning fork should be properly aligned with the direction of medium movement. It should also be installed away from direct inlet or outlet positions to reduce the impact of flow, turbulence, and false triggering. When installed correctly, the switch requires little maintenance and is suitable for long-term stable operation in general industrial applications.
4. Typical Application Scenarios
4.1 Industrial Water Tank Level Monitoring
Industrial water tanks are commonly used for equipment water supply, cooling water replenishment, cleaning water, and circulating water systems. If the liquid level is too low, the pump may run dry. If the liquid level is too high, overflow, water waste, or on-site water accumulation may occur. The Ring-21 can be installed at the high or low level point of a water tank to output alarm signals or control refill pumps and drainage valves.
For high level detection, when the water level rises and touches the tuning fork, the level switch outputs a signal to stop the pump or open the drainage valve, preventing overflow. For low level detection, when the water level falls below the set point, the system can start the refill pump to ensure continuous equipment operation. For water tanks that only require upper and lower limit control, the Ring-21 offers an easy-to-install, cost-effective, and reliable solution.
4.2 Coolant Tank Level Control
Machining equipment, air-conditioning circulation systems, heat exchange equipment, and industrial cooling devices usually need to maintain a stable coolant level. Insufficient coolant may reduce heat dissipation efficiency and, in severe cases, cause excessive equipment temperature, reduced machining accuracy, or shutdown protection.
The Ring-21 can be used for high and low level alarms in coolant tanks. When the liquid level is too low, the system can issue a refill reminder or automatically start the refill device. When the liquid level reaches the high point, the level switch outputs a signal to prevent overfilling. Thanks to its compact size, it can be installed in small coolant tanks or within limited equipment spaces, making it suitable for mechanical equipment, circulating cooling systems, and small automation devices.
4.3 Lubricating Oil Tank Level Monitoring
If the lubricating oil level is too low, mechanical parts may not receive sufficient lubrication, leading to increased wear or even damage to bearings, gears, and transmission components. Traditional manual inspection methods are affected by inspection frequency, operator experience, and on-site visibility, which may result in delayed response.
By installing the Ring-21 at the low level point of a lubricating oil tank, the switch can output an alarm signal when the oil level drops to the set point. This reminds operators to refill oil in time or links with an oil refill pump for automatic replenishment. For small and medium-sized mechanical equipment, hydraulic stations, lubrication systems, and equipment-mounted oil tanks, using a compact tuning fork level switch can reduce manual inspection workload and improve equipment reliability.

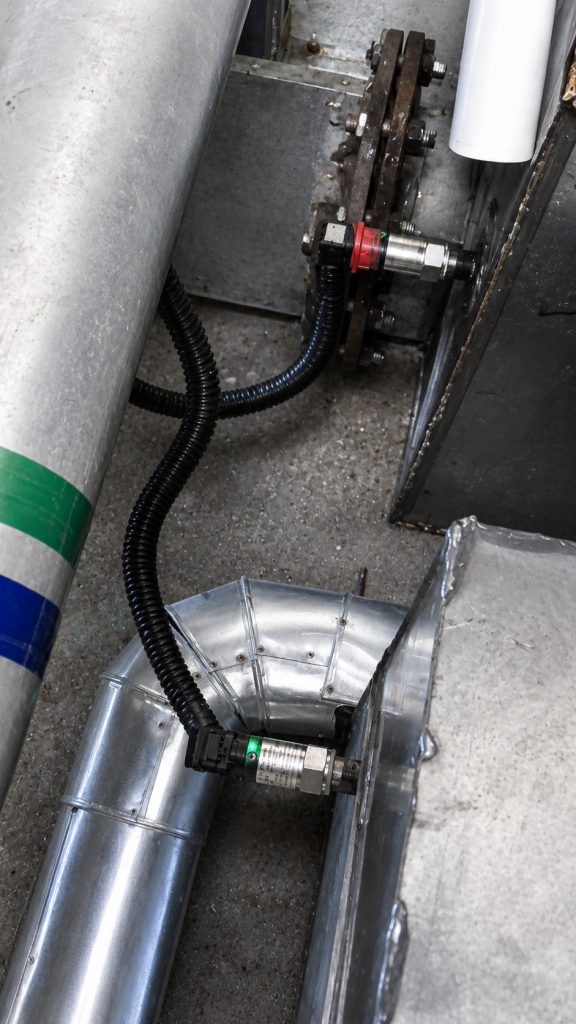

4.4 Pipeline Point Level Detection
In some pipeline systems, users need to determine whether liquid is present in the pipe, whether the liquid has reached a specified position, or whether abnormal empty-pipe or full-pipe conditions exist. With its short fork and small diameter, the Ring-21 is suitable for applications with limited pipe diameter and tight installation space. It can be used as a point level detection device in pipeline systems.
Compared with larger level instruments, the Ring-21 is more flexible for pipeline applications. It helps the system determine the presence of liquid and can work together with PLCs, alarms, pump and valve control systems, and other automation systems to achieve automatic protection. It is especially suitable for point level detection in water treatment, circulating water, cleaning liquid transfer, and general liquid pipelines.

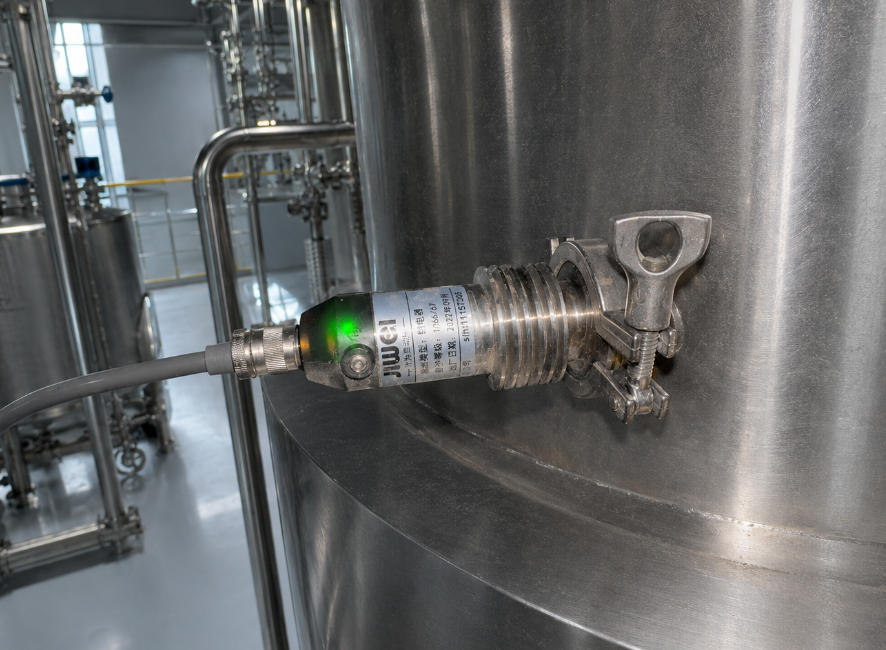

4.5 Sumps and Small Storage Tank Alarms
In factories, utility systems, and environmental protection processes, sumps, small storage tanks, cleaning liquid tanks, and domestic water tanks often require high and low level alarms. These applications usually involve relatively simple operating conditions but require timely alarm response and convenient maintenance.
The Ring-21 can be installed at the set level point of a sump or small storage tank for high level overflow alarms, low level shortage alarms, or pump start-stop control. When the liquid reaches the set point, the switching signal can be transmitted to a control cabinet, audible and visual alarm, or automatic control system, helping on-site personnel respond to abnormal conditions quickly.
4.6 Laboratory and Pilot Plant Level Monitoring
Laboratory equipment, pilot plants, and small process devices usually have limited space and small container volumes, making them unsuitable for large level instruments. The Ring-21 is compact and lightweight, making it suitable for point level control in small reaction vessels, test tanks, refill tanks, and auxiliary process containers.
For non-explosion-proof and general liquid applications, the Ring-21 can achieve level protection at a relatively low installation cost. It helps reduce the risks caused by liquid shortage, overfilling, or delayed refilling during laboratory or pilot plant operations.
5. Advantages of the Ring-21 Compared with Traditional Float Switches
Float switches are simple in structure and widely used, but in some applications they may be affected by float blockage, mechanical wear, liquid fluctuation, and installation direction limitations. The Ring-21 uses tuning fork vibration detection and does not depend on the up-and-down movement of a float to determine the liquid level. Its structure is more compact and better suited for narrow spaces and small containers.
In terms of maintenance, a tuning fork level switch has no complex moving mechanical parts, which improves long-term operational stability. For users who want to reduce maintenance frequency, improve level alarm reliability, and control project costs, the Ring-21 can be considered an alternative to traditional float switches.
6. How to Choose the Right Compact Level Switch
When selecting a compact level switch, users should pay attention to the following factors.
First, confirm the type of medium. The Ring-21 is suitable for clean water, coolant, light oil, and general low-corrosive liquids. If the medium is strongly corrosive, highly viscous, prone to crystallization, or contains a large amount of impurities, further model selection should be made based on actual operating conditions.
Second, confirm the installation space. If the tank is small, the pipeline is narrow, or the internal space of the equipment is limited, a level switch with a short fork and compact structure should be preferred.
Third, confirm the process parameters. Users need to consider medium density, temperature, pressure, flow velocity, and whether explosion-proof requirements exist. The Ring-21 is mainly suitable for cost-sensitive general applications that do not require explosion-proof certification.
Fourth, confirm the output type and control logic. According to the on-site control system, users can choose relay output or transistor NPN/PNP output for connection to PLCs, alarms, pump and valve control cabinets, or other automation systems.
Fifth, confirm the installation position. The switch should be installed away from liquid inlets, outlets, and areas with strong impact. This helps prevent liquid fluctuation, bubbles, or flushing from affecting detection stability.
7. Why Choose the Jiwei Ring-21 Compact Tuning Fork Level Switch?
Jiwei has long focused on the research, development, production, and sales of level measurement instruments. Its product range covers tuning fork level switches, vibrating rod level switches, radar level meters, ultrasonic level meters, magnetic level gauges, rotary paddle level switches, RF admittance level switches, and many other series. These products are widely used in chemical, power, environmental protection, food, building materials, new energy, and other industries.
The Ring-21 compact tuning fork level switch reflects Jiwei’s focus on reliability, practicality, and cost performance in the field of level measurement. It is not designed to replace all complex level measurement instruments. Instead, it focuses on solving point level detection problems in general applications, small containers, narrow spaces, and cost-sensitive projects. For industrial water tanks, coolant tanks, lubricating oil tanks, sumps, small storage tanks, and pipeline point level detection, the Ring-21 provides a simple, stable, and economical level control solution.
8. Conclusion: Reliable Level Control Starts with a Practical Compact Switch
The core value of level detection does not lie in how complicated an instrument looks, but in whether it can output a stable signal at critical moments to help the system avoid overflow, liquid shortage, pump dry running, and unexpected shutdowns. With its compact structure, tuning fork detection principle, 316L stainless steel material, easy installation, and economical performance, the Ring-21 compact tuning fork level switch offers a cost-effective option for general industrial liquid storage and equipment integration applications.
If your project involves small water tanks, oil tanks, coolant storage tanks, pipeline level detection, or general liquid high and low level alarms, the Ring-21 compact tuning fork level switch is worth considering as a preferred selection. It can provide reliable point level control in limited spaces, helping enterprises improve equipment safety, reduce manual inspection, lower maintenance costs, and make level management simpler and more efficient.
